Name: Pesticide Powder Formulation Plant
Brand: Varahi Industries
SKU: VI-PPFP-01
Availability: InStock

Pesticides Formulation Plant

Varahi Industries’ Pesticides Formulation Plant integrates pre-blending, ultra-fine grinding (Air Jet Mill), classifying, conveying, collecting and post-blending to deliver uniform, steep particle size distributions for pesticides, insecticides and fungicides.

The Air Jet Mill micronizes ingredients to enhance suspensibility while the system’s closed handling maintains cleanliness, safety and consistent quality—independent of particle size, shape or density (suspension flow through ducts).

Enquire Now

Process Flow & Working Principle

Pre-Blending

Active ingredients and carriers are premixed for uniform feed characteristics.
Air Jet Milling

High-velocity jets create a vortex; particles collide and micronize with no moving parts in the grinding zone—ideal for heat-sensitive, abrasive or dust-explosive materials (N₂ closed loop available).
Classification

Self-classification in the mill or external classifier ensures steep, narrow PSD; fines exit, coarse recirculates.
Conveying & Collection

Pneumatic conveying to cyclone / pulse-jet dust collector for clean, high-yield recovery.
Post-Blending

Final homogenization preserves uniformity and suspensibility in the product.

Key Features

Better material suspensibility & uniform homogeneity
Low power consumption with efficient jet milling
Ultra-fine grinding for right molecular / surface activity
Handles dust-explosive & abrasive materials; N₂ closed-loop to maintain O₂%
Bag filters with anti-static media; thicker GSM bags for strict emission norms
Consistent steep PSD—uniform and homogeneous output

Technical Specifications

Air Jet Mill
Feed Size	100 – 200 mesh
Capacity	Up to 500 Kg/hr (material dependent)
Output Fineness	99% pass 2500 mesh BSS
Country of Origin	Made in India
Phase / Voltage	3 Phase / 380 V
Brand	Varahi

Performance varies with formulation properties, air pressure and feed rate.

Safety, Hygiene & Compliance

Pulse-jet dust collection with anti-static bags reduces explosion risk and emissions.
Nitrogen inerting (closed loop) for low O₂ operation during micronization.
Clean-in-place / easy access designs for rapid product changeover (on request).

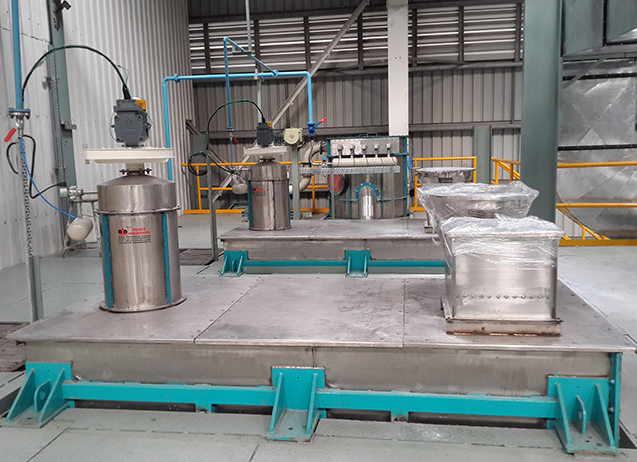

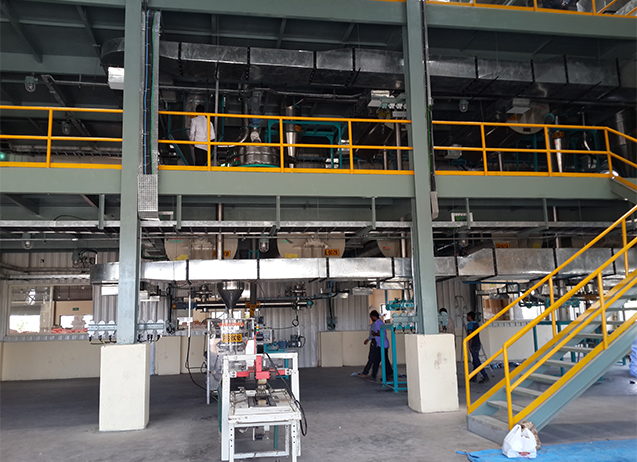

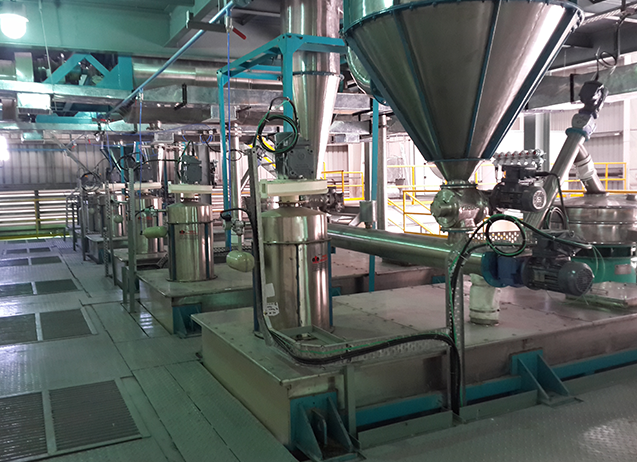

Pesticides Formulation Plant (with Air Jet Mill)
